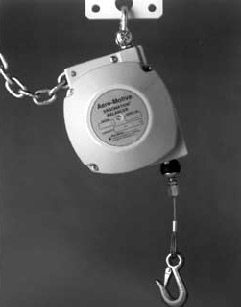

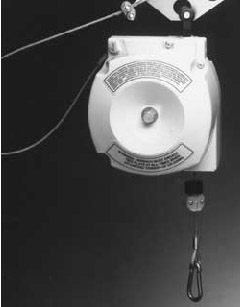

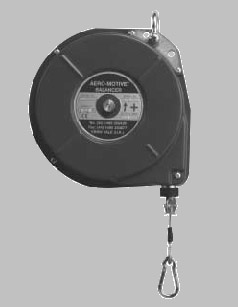

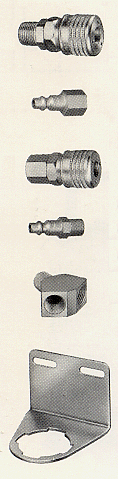

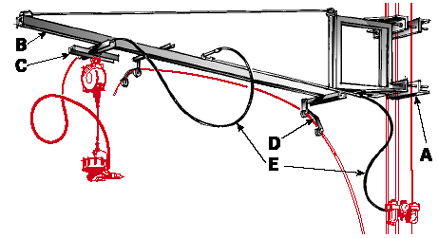

Quick-disconnect socket3/8" (9.5mm) i.d. (P-8569). Lubricator fitting for hose connection. Quick-disconnect plug 1/4"(6.4mm)i.d. (p-8568). Hose fitting for lubricator connection Quick-disconnect socket 1/4"(6.4mm)i.d. (P-20706). Hose fitting for tool connection. Quick-disconnect plug 1/4" (6.4mm)i.d.(P-20704). Tool fitting for hose connection. Y-fitting(P-8574)for operating  two tools simultaneously Regulator mounting bracket (P-71982) Type tool Recommended Air Hoses for Pneumatic Tools 10'×1/4"(3.0m×6.4mm)i.d (P-8737) 10'×3/8"(3.0m×9.5mm)i.d. (P-8558) Sealers CN-5823 CN-3425 NSP-1435 RCNS-3435 RCNS-1-1435 N-1444-50LSH NS-250-65L       Tensioners     N1-34-TVA FN-114T HN-1-114 PN-114 PNR-114 WP-2     Combination Tool     AMP-1-12 AMP-1A-12 AMP-1-58 AMP-1A-58 AMP-1-34 AMP-1A-34 AHP-34 AHP-2-114 SMP-12 SMP-58 SMP-34 SHP-3431 SHP-1431 PRH-34 PRH2-114 Tool Suspension Systems For steel and plastic strapping Overhead tool balancers Tool balancers are the easiest and most efficient way to suspend strapping tools from a fixed ceiling bracket, monorail, jib or bridge crane. 10FLR Part No. 485010 4-10 lbs. (1.8-4.5 kg), 8 ft. (2.4 m) cable travel 15FLR Part No. 485011 8-15 lbs. (3.6-6.8 kg), 8 ft. (2.4 m) cable travel BFL-9 Part No. 423283* 6-9 lbs. (2.7-4.1 kg), 6.6 ft. (2 m) cable travel BFL-13 Part No. 306809* 9-13 lbs. (4.1-5.9 kg), 6.6 ft. (2 m) cable travel BFL-18 Part No. 423278* 13-18 lbs. (5.9-8.2 kg), 6.6 ft. (2 m) cable travel EB2500R Part No. 485001* 18-25 lbs. (8.2-11.4 kg), 6.6 ft. (2 m) cable travel EB3500R Part No. 485002 25-35 lbs. (11.3-15.9 kg), 6.6 ft. (2 m) cable travel EB4500R Part No. 485003 35-45 lbs. (15.9-20.5 kg), 6.6 ft. (2 m) cable travel * Ratchet lock halts cable at desired position, prevents creep. The lock can be released by a tug and can also be disengaged.   Jib crane Signode’s JN-15, Part No. 084165, is a 15 ft. (4.6 m) jib crane used to suspend pneumatic combination tools overhead. It handles steel strapping in widths up to 1-1/4" (31.8 mm). A. Post mounting bracket                  D. Strap guide rollers B. Enclosed trolley track                   E. Air line components C. Tool carrier assembly           Power Strap Feeder (PSF-2)   For plastic and steel strapping The PSF-2 power strap feeder is designed to improve virtually any manual packaging operation regardless of package size, strapping material, pallet type, or packaging line configuration. The modular design can be customized to accommodate your packaging operation. Standard features: automatic strap feed shutoff, automatic seal feed bend over device. Options: chute extensions, casters, pallet void feeding attachments, strap grippers, strap directors, and more. Efficiency Automatic strap feeding greatly improves production speed and helps eliminate bottlenecks. Economy The PSF-2 requires only one operator (two or more are required for manual strap feeding), which can significantly reduce operating costs. Your labor cost savings, coupled with increased production, elimination of bottlenecks and the PSF-2’s low cost, gives you a relatively quick return on investment. Specifications Maximum 76"H (1930mm), 48"   package size: (1219mm) front to back   Steel strapping: 3/8" x .017" to 3/4" x .031"                         (9.5 mmx 0.43mm to 19mm x 0.79mm)   Plastic strapping: Tenax® 1716, 1718, 1816,                               1818, 1822, 2030, 2040 Contrax®                               HD 723, HD 729, 816, 818   Dispenser: DF-23, DF-1-12D   Tool suspension: Overhead jib suspension with cable   Motor: 1/4 hp (.1864 KW), 1140 RPM, 115V, single phase, 60Hz
