Pneumatic
push-type

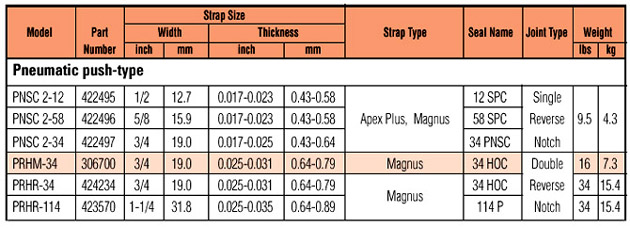

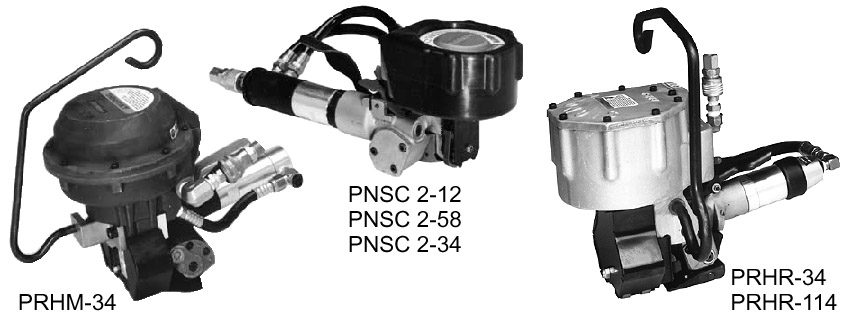

Pneumatic
push-type combination tools,
including the PNSC and PRH Series
models, are used with push-type
seals on irregular-shaped packages.
Air power tensions, seals and
cuts the strapping.
|
|
|
Combination
tools function as tension-ers,
sealers, and often cutters as
well.They
save time by eliminating the
handling of separate tools.
But weighing more than such
tools, they should be placed
as close as possible to the
position where they will be
used. Seal-feed combination
tools carry a stack of seals
in a magazine forfast, easy
loading.

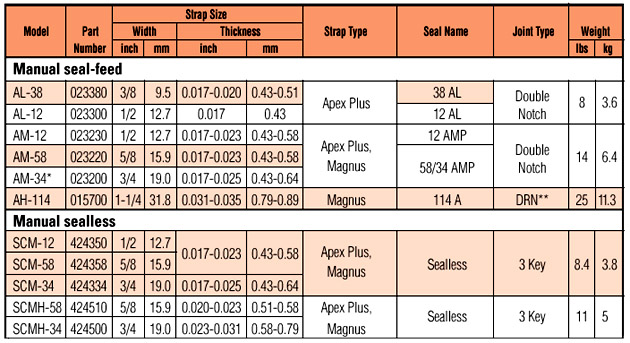

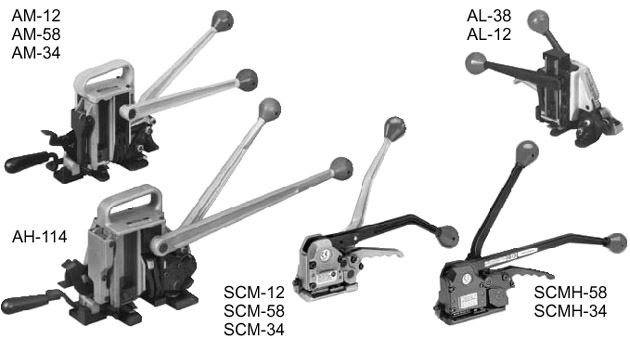

Manual
seal-feed Manually
operated seal-feed combination
tools include the AH, AL, and
AM series models.  Manual
sealless

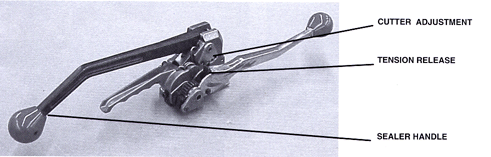

The
SCM sealless combination tool
requires no metal seals, saving
time and money. Production interruptions
for reloading are eliminated,
along with the purchasing, inventorying
and loading of seals.

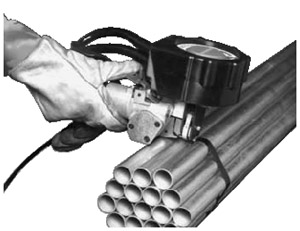

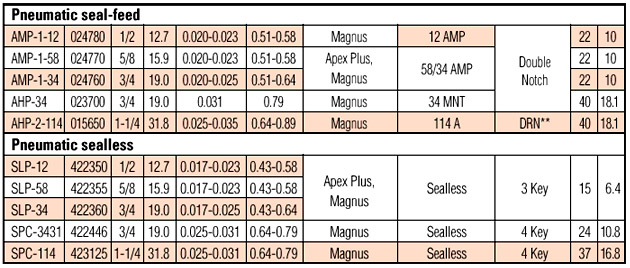

Pneumatic
seal-feed
Using
applied air pressure as a power
source, pneumatic seal-feed
combination tools quickly and
effortlessly tension, seal,
and cut the strapping. These
tools include the AHP and the
AMP.  Pneumatic
sealless Pneumatic
sealless combination tools
include
the SLP and the SPC. |

|
|
....................................................................................................................................................................................................................................
|
|
For
plastic strappingCombination
strapping tools
Combination
tools function as tensioners,
sealers, and often cutters as
well. They save time by eliminating
the handling of separate tools.
But because they weigh more
than such tools, they should
be placed as close as possible
to the position where they will
be used.Seal-feed
combination tools carry a stack
of seals in a magazine for fast,
easy loading.

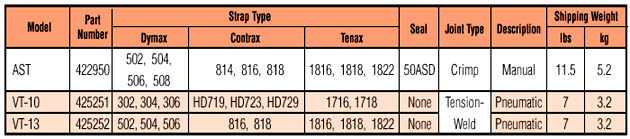

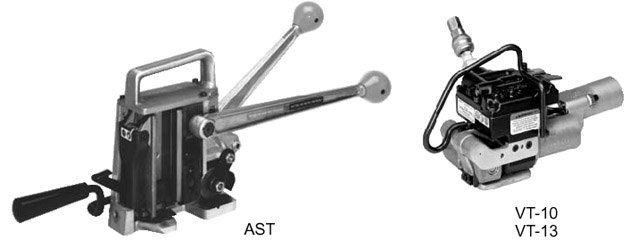

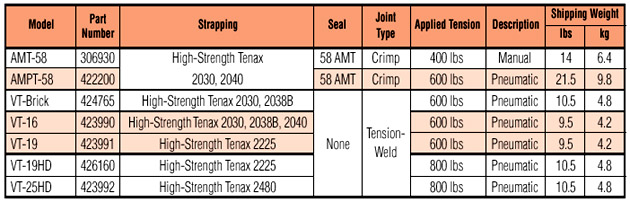

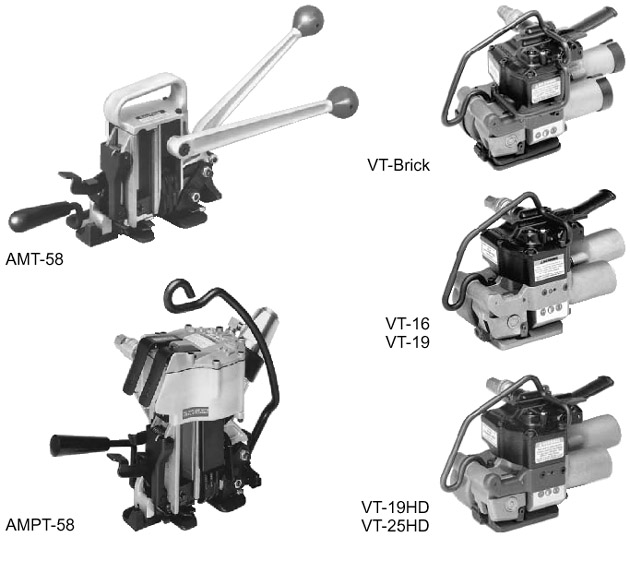

Manual The
AST manual seal-feed combination
tool uses Contrax, Dymax and
Tenax strapping.The
AMT-58 is the ideal tool for
High-Strength Tenax strapping. Pneumatic The
pneumatically operated AMPT-58
applies High-Strength Tenax
strapping. A built-in seal magazine
automatically dispenses metal
seals. Pneumatic
Tension-Weld The
model VT-10 and VT-13 combination
tools apply Contrax, Dymax and
Tenax strapping. Strap ends
are joined with Signode’s patented
Tension-weld process, eliminating
the need for metal seals. The
lightweight VT-16, VT-19, VT-19HD
and VT-25HD tools apply High-Strength
Tenax strapping at higher tension
levels. Ideal for use in both
horizontal and vertical applications.
|

|
|
.....................................................................................................................................................................................................................................
|
|
For

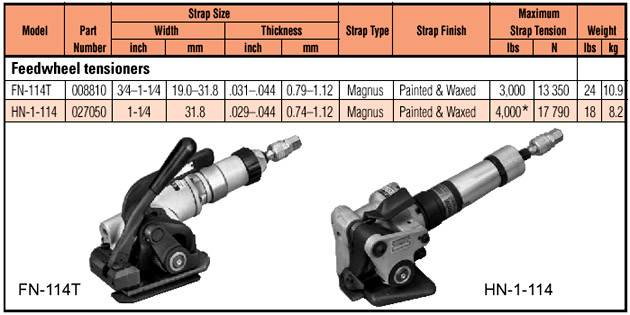

steel strapping Tensioners Signode
pneumatic tensioners take most
of the effort out of strapping
large or compressible packages.
They also make tensioning uniform
andprecise through adjustment
of the air pressureregulator.  All

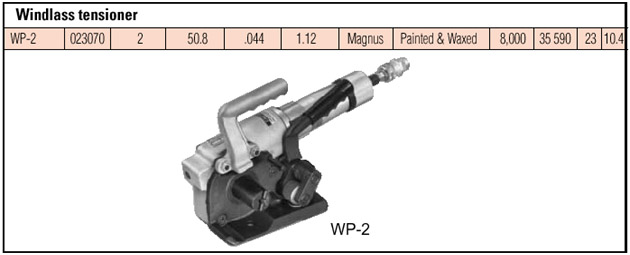

pneumatic tensioners, except
the WP-2, have unlimited strap
take-up. All pneumatic tensioners
are furnished with a quick-disconnect
plug.It
is essential that an air filter-regulator-lubricator
assembly (Part No. 173111) be
installed ahead of the tool
on the air line. See page 11

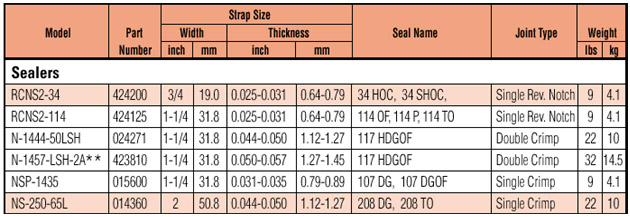

for pneumatic tool accessories. Sealers Signode
pneumatic sealers let compressed
air do most of the work.They
are used to achieve high production
on heavy strapping, especially
when seals are in awkward positions
or whenever productivity must
be maximized.These
labor-saving sealers come in

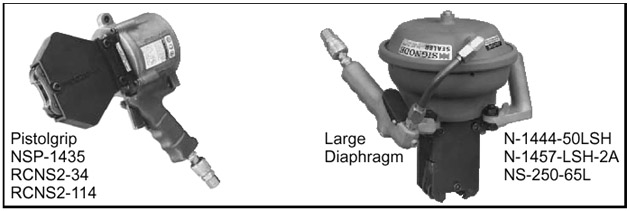

two basic styles. Those featuring
pistol grips are lightweight
for easy one-hand operation.
Diaphragm types are for heavier-duty
applications, such as carloading.  All
pneumatic sealers are furnished
with a quick-disconnect plug.
An air filter and regulator
are necessary.A
lubricator in the air line is
not required.See
page 11 for pneumatic tool accessories. *
Rated at 2,800 lbs. of
tension at 60 P.S.I.
**
Three seals are required per
joint. |

|
|
....................................................................................................................................................................................................................................
|
|
For
steel strapping

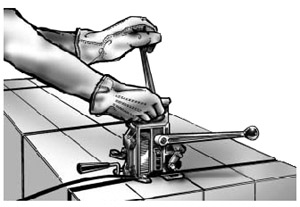

Signode

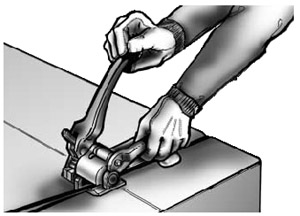

hand tensioners allow opera-tors
to bring strap to desired tension
with minimal interruption, effort
and strap waste.Most
tensioners have a base which
goes under the strapping and
rests on the flat surface of
the object being strapped. For
smaller or irregular bundles,
a push-type tensioner, which
has no base under the strap,

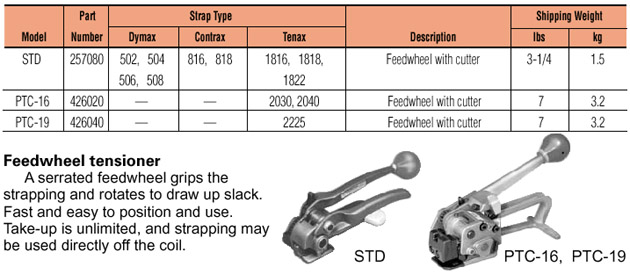

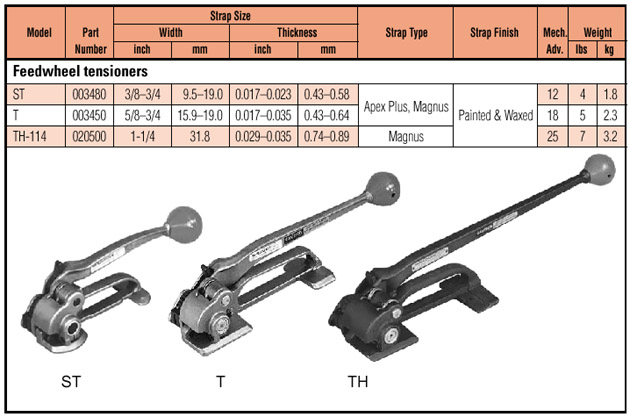

is recommended. Feedwheel—for
general use The
feedwheel tensioner has a serrated
feedwheel which engages the
strapping firmly. There is no
limit to the amount of slack
it can pull out of the strap.
Fast and easy to use, it requires
the use of painted and waxed

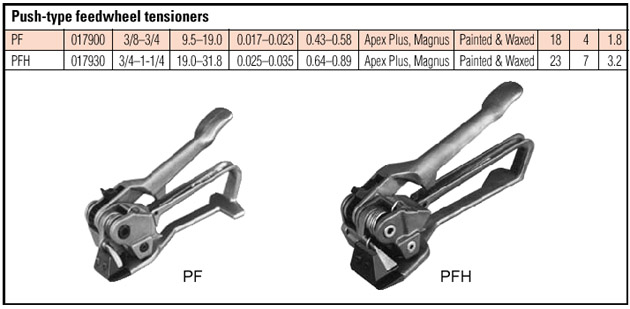

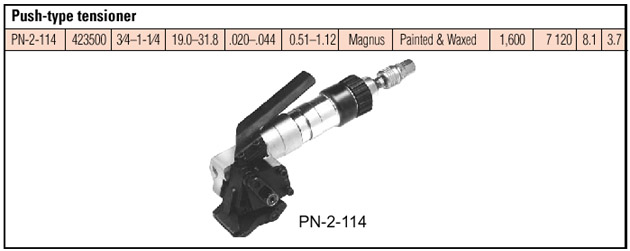

strapping.  Push-type
feedwheel—for round or irregular

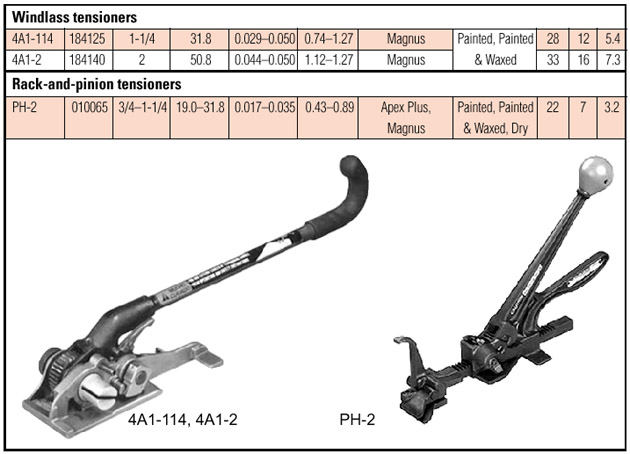

bundles Windlass—for

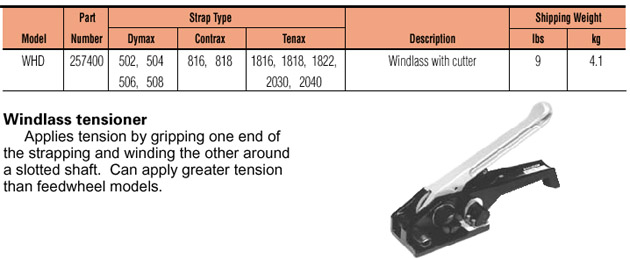

heavy-duty applicationsThe
windlass tensioner simply winds
one end of the strapping around
a slotted windlass shaft. Used
with dry, heavier strapping,
precut to desired lengths. Rack-and-pinion—for
heavy round or irregular applicationsThe
rack-and-pinion tensioner uses
a serrated gripping dog to hold
the pulled strap end. It can
be used with either dry or lubricated
strapping on round or irregular
shaped packages. This tensioner
has limited take-up.
|

|
|
...................................................................................................................................................................................................................................
 |
|
|
|
|
For
plastic strapping |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
....................................................................................................................................................................................................................................
|
|
For
steel strapping |
|
|

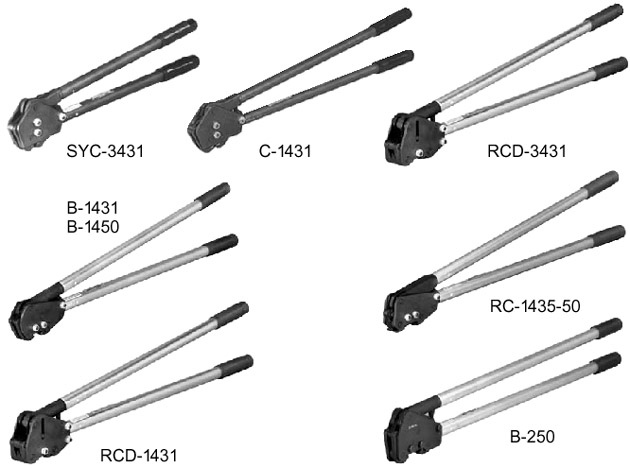

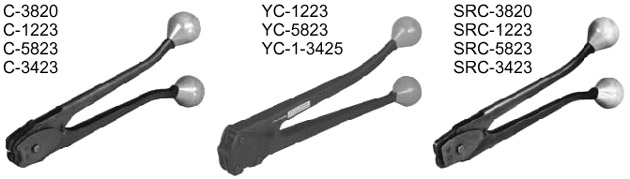

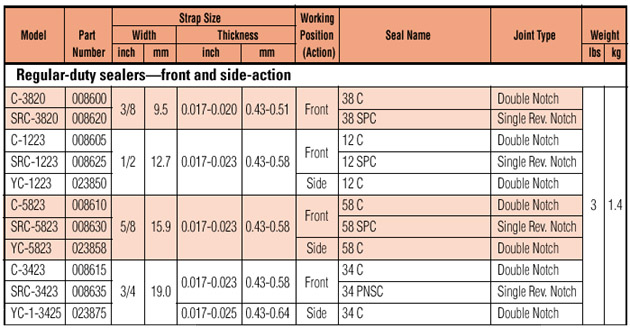

Signode
manual sealers provide positive
sealing action with minimal
effort. Light and durable, they
lock strap ends into a high

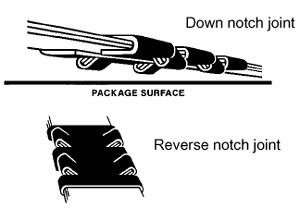

strength joint. Notch-type sealers
cut into the seal and outer
edges of the strapping, turning
tabs down (down notch) or up
(reverse notch).  Crimp-type
sealers press the edges of the
strapping and seal into wavycrimps
specially shaped to produce
maximum frictional forces on
the strapping.  Two
sealer typesSide-action
and front-action Front-actionFront-action
sealer handles are held perpendicular
to the strapping, usually in
front of the operator who pushes
the handles together close to
the chest.Generally

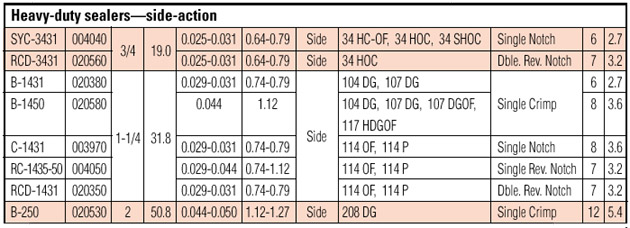

for light-duty strapping applications.  Side-actionThe
side-action sealer's lower handle
can be rested on the flat surface
of the unit being strapped.
Operators can apply much of
their weight with both hands
on the upper handle. Generally
for heavier strapping applications.
|

|
|
....................................................................................................................................................................................................................................
|
|

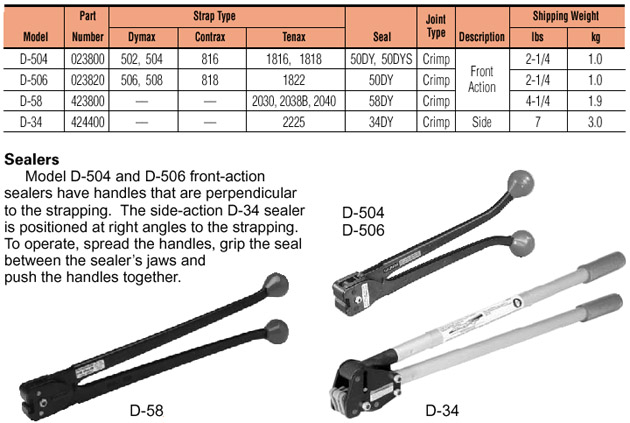

For
plastic and steel strapping

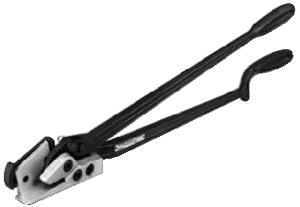

Cutters—for
plastic and steel strapping |
|
|
Model
CY-29Part
No. 426000
Lightweight.
Improved alloy steel.
Cuts strap through
3/4" x 0.031"
(19.0
x 0.64 mm).
Shipping
weight: 1.5 lbs.
(0.68 kg) |
|
Model
CU-30Part
No. 005899
Lightweight.
One-hand operation.
Cuts strap through
1-1/4" x 0.035"
(31.8
x 0.89 mm).
Shipping
weight: 3 lbs. (1.35
kg) |
|
|
Model
CY-30Part
No. 426001
Lightweight.
Improved alloy steel.
Cuts strap through
1-1/4" x 0.035"
(31.8
x 0.89 mm).
Shipping
weight: 3 lbs. (1.35
kg)
|
Model
CU-25Part
No. 005740
For
strap removal or
cutting strap to
length. Replaceable
blades. Cuts strap
through 2"
x 0.050" (50.8
x 1.27 mm).
Shipping
weight: 8 lbs. (3.6
kg) |
|
...................................................................................................................................................................................................................................
|

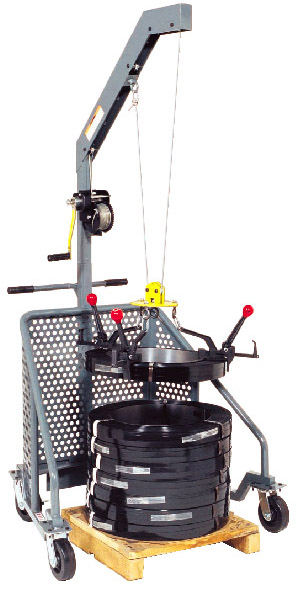

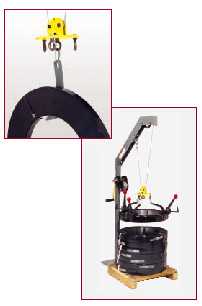

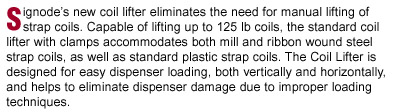

Coil
Lifter
Eliminates
manual lifting |
|
|
|
|
....................................................................................................................................................................................................................................

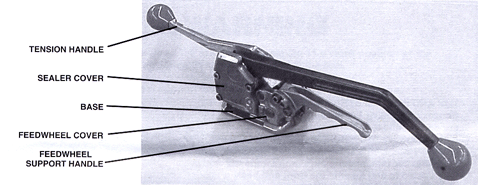

SCMG - (조임,결속,절단을
하나로) 만능수동공구
|
|
SCMG 시리즈는 저희
(주)산업포장유통이 자신있게 내놓은 제품으로서 철밴드를 클립이 없이
조이고
결속하며
절단까지
마무리 할 수 있는 다기능
수동공구입니다.
|
TOOL
MODEL |
STRAP |
TYPE |
WIDTH |
THICKNESS |
SCMG-12 |
P/N
425020 |
Apex |
1/2"
(12.7mm) |
0.015
~ 0.025"
(0.38 ~ 0.64mm) |
SCMG-58 |
P/N
425030 |
5/8"
(15.9mm) |
SCMG-34 |
P/N
425040 |
3/4"
(19.1mm) |
|
|
MAJOR COMPANENTS
|
|
|
|
|
|
|
|
|
....................................................................................................................................................................................................................................
|

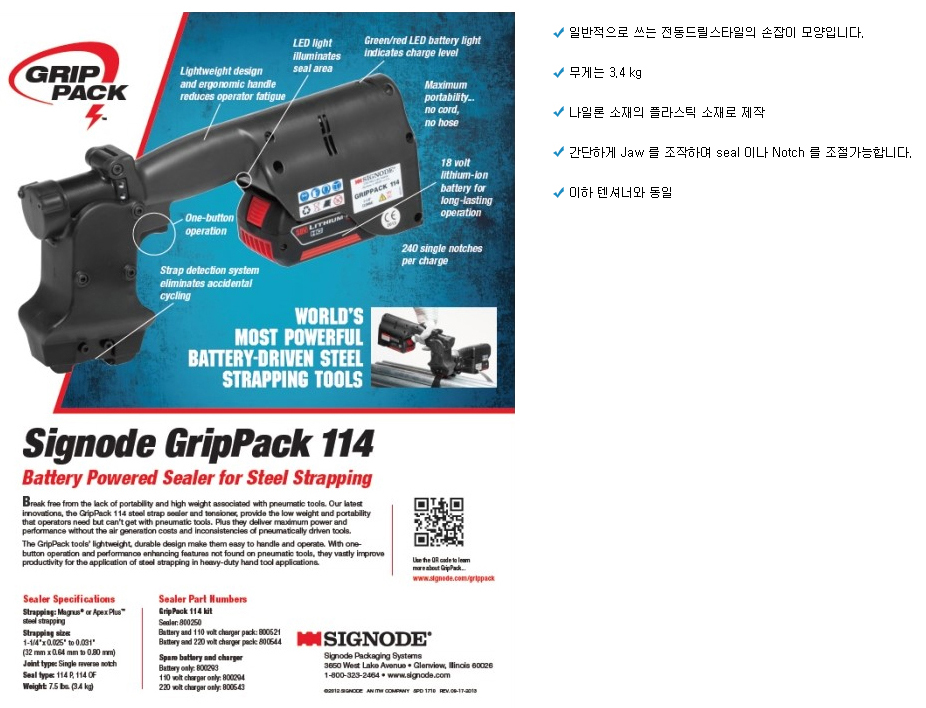

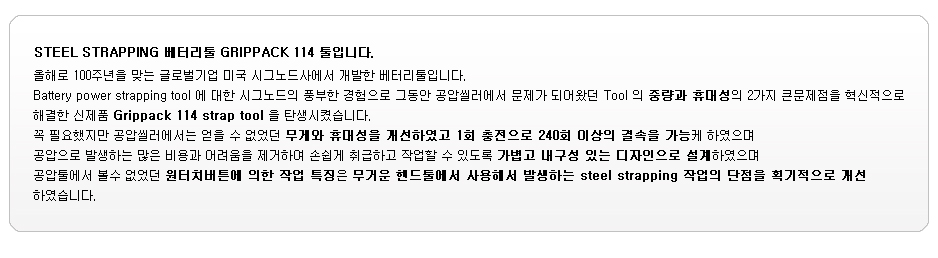

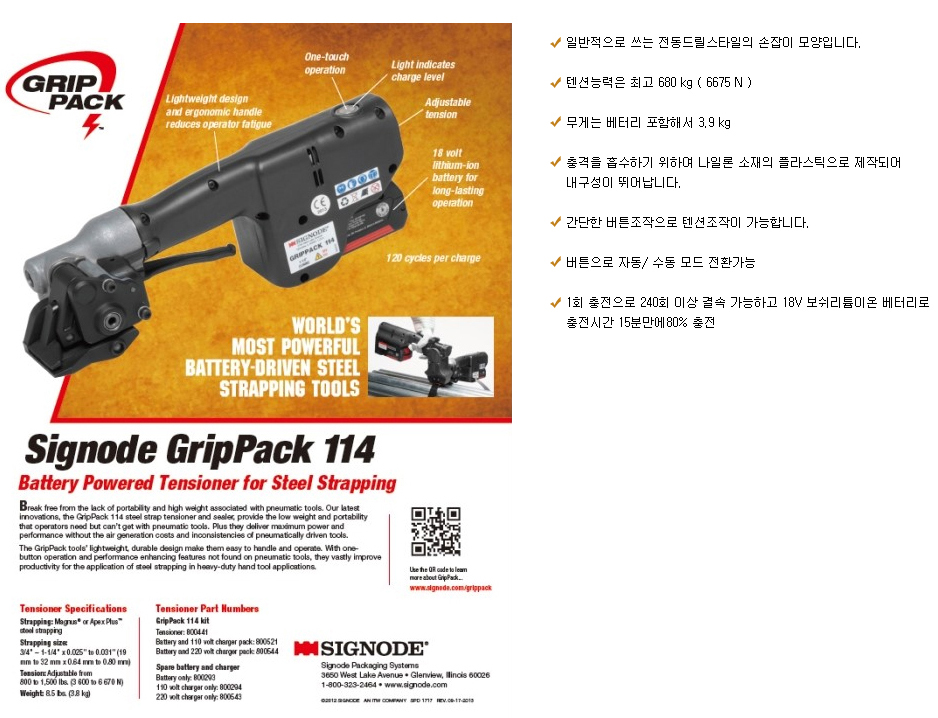

STEEL STRAPPING 베터리툴 CRIPPACK114 툴 |
 |
Tensioner |
 |
| |
Sealer |
 |
