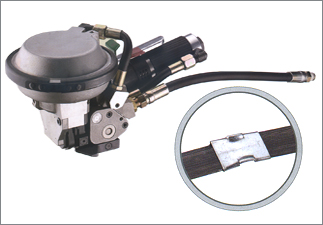

SA 106
19mm
Pneumatic pusher type strapping tool that produces a single notch seal joint.
Use with closed seal. Ideal for flat or round surfaces.
Strapping Dimensions: Width 1/2"~3/4" Thickness 0.015"~0.025".
Max. Tension: 4300N
Air Pressure: 4.5~6 bar
Tool Weight: 4.9 kgs
|
| |
|
|
|

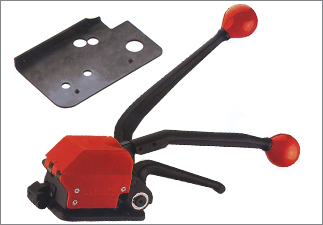

SL 230
13mm~19mm
Same as SL 200 but all plastic material are with -40 degree Celsius reistance.
It works in cold environment.
With SL 220-90 base protector installed in SL 210 tool.
|
| |
|
|
|

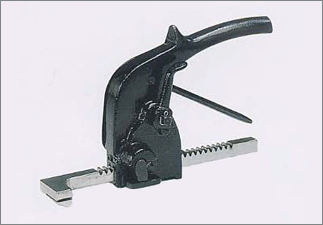

S 210
Push bar tensioner with breaker nose to cut the strap. Use with closed seals.
For 3/8"~3/4"x0.02" max. steel strapping.
Good for round, irregular or non-compressible pakages.
|
| |
|
|
|

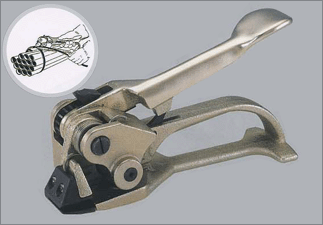

S 246
Deluxe pusher tensioner for 3/8"~3/4"x0.025" max. steel and pet straps.
Use closed seals when applying steel strap. Use wire buckles (CWB4/ CWB5/CWB5)
when applying PET straps. Good for both round and flat pakages. |
|
|
|
|
|
S 247
Same as S246 but for 5/8"~1-1/4"x0.035"max. steel and PET straps. |
|
|
|
|
|

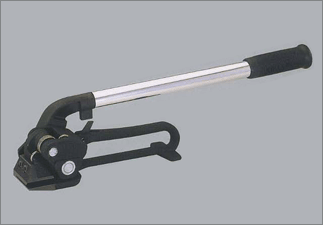

S 248
Heavy duty pusher feed-wheel tensioner for 3/4"~1-1/4"x0.6~1.2mm max.
steel strapping. Use with closed seals.
Good for both round and flat pakage.
|
|
|
|
|
|

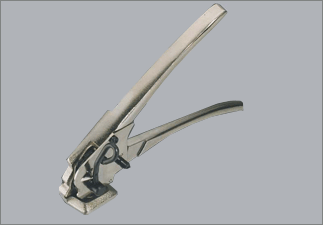

S 250
Light duty feed-wheel tensioner for small packaging.
For 3/8"~5/8"x0.02" max. steel strapping. |
|
|
|
|
|

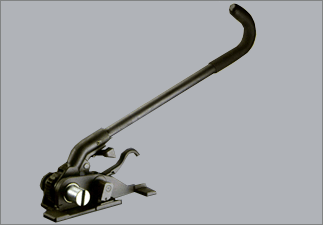

PH 320
Heavy duty windlass tensioner
For cord strap uo to 1 ~1/4"wide.(25m/m~32m/m용) |
|
|
|
|
|

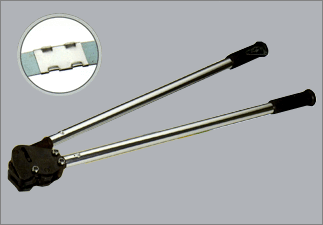

C 3160
Double notched side action steel stapping sealer with aluminum pipe handle.
handle langth 25.5".
C3160 for steel strapping 3/4" and thickness from 0.025" up .
Use with CS 20/CS 21/CS 22 closed seal.
P3166 for steel strapping 1"x0.035".
P3180 for steel strapping 1-1/4"x0.035" .Use with CS 28 closed seal(19m/m용)
|
|
|
|
|
|

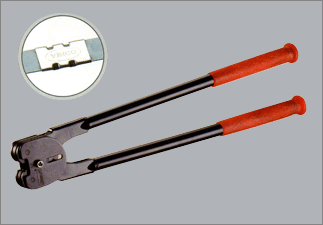

C 3226
3/4" heavy duty double notched 17" handle steel strapping sealer.
Whole tool is heat-treated Use with CS 061 open seal or CS 20/CS 21/CS 22 closed seal.(19m/m용)
|
|
|
|
|
|

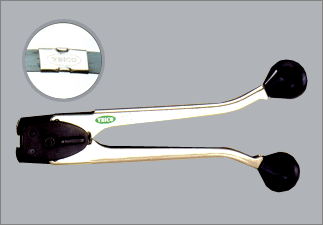

C 3155/ C 3156
Single notched high tensile 11" handle steel strapping sealer . Whole tool is heat-treated.
C 3154 : 1/2" Use with closed seal.
C 3155 : 5/8" Use with closed seal. (16m/m용)
C 3156 : 3/4" Use with closed seal. (19m/m용) |
 |
 |
|
|
 |
 |
 |
|
|
|

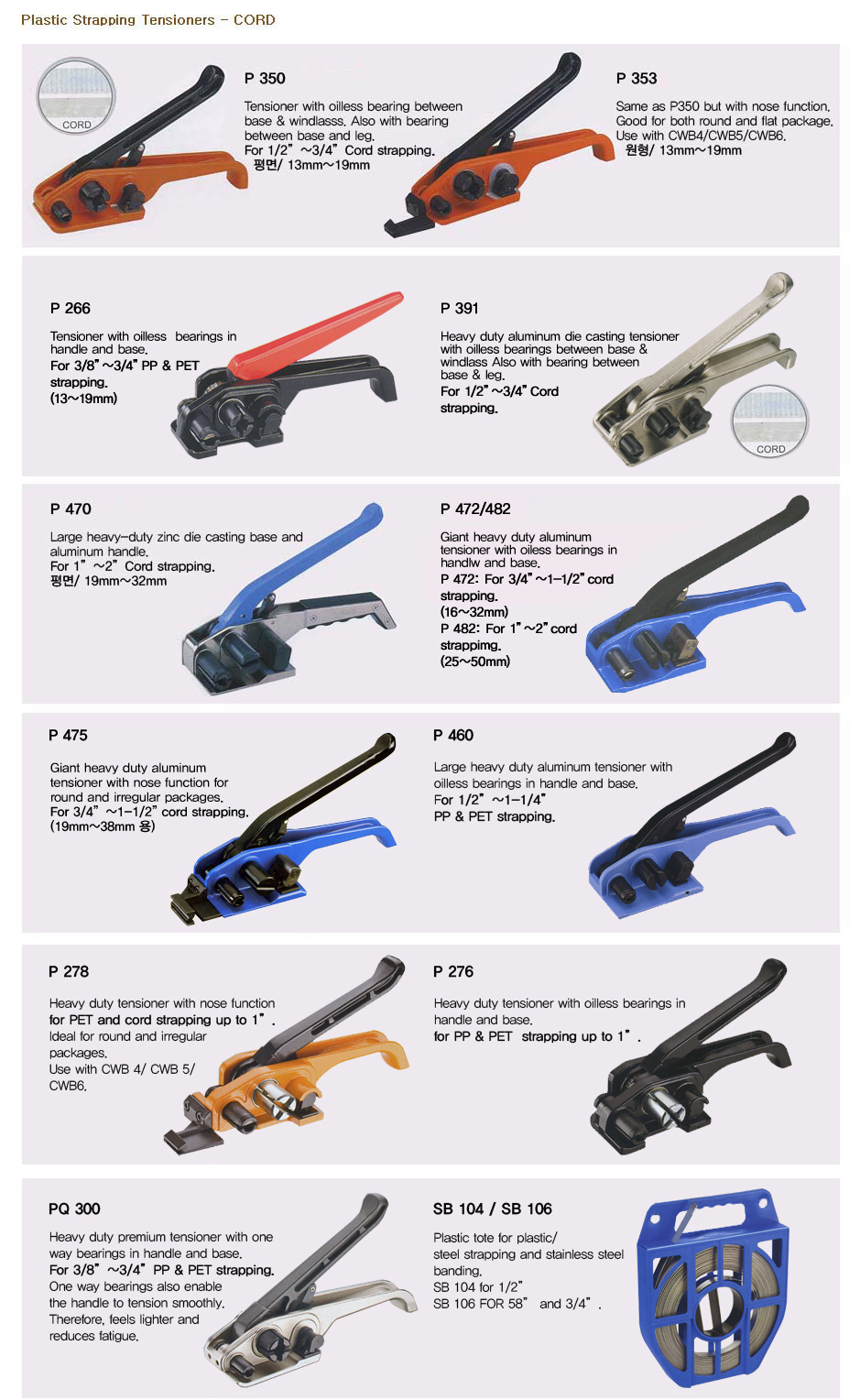

Plastic
Strapping Tensioners |
 |

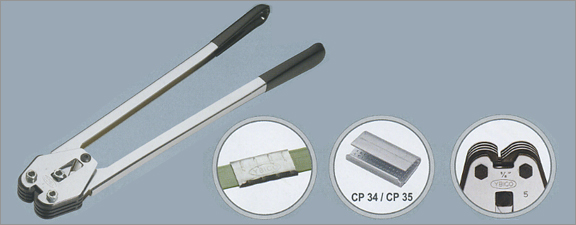

C 5004/ C 5005/ C 5006 /C 5015 (Off-set type)
High quality 17" handle PET strapping sealer. Whole tool is heat-treated.
● C 5004 : 1/2" PET strapping. Use with CP 34 gripper seal.
● C 5005 : 5/8" PET strapping. Use with CP 35 gripper seal.
● C 5015 : 5/8" PET strapping thickness from 0.8mm up. Use with CP 35 gripper seal.
● C 5006 : 3/4" PET strapping thickness up to 0.8mm.
|
|
|
|
|
|
Dispensers
| STEEL
STRAP
CA 441, CA 510, CA 500 |
CA 400HS, CA420HS |
CA 100 |
|
품명 |
용도 |
CA-441 |
16mm~19mm RW
/ 내경 300 용 |
CA-510 |
25mm~32mm MW/RW
/ 내경 400 용 |
CA-500 |
16mm~25mm MW
/ 내경 400 용 |
|
품명 |
CORE SIZE |
MAX. STRAP WIDTH(mm) |
MAX. FACE COIL(mm) |
CA-400HS |
400/ 25mm~32mm |
51 |
90 |
| DISK OUTER DIA(mm) |
COIL WINDING |
WHEEL TYPE |
ASSEMBLED |
| Metal710 |
R/O |
8" rubber w/steel center |
Fully |
|
품명 |
용도 |
CA-100 |
PET, CORD, PP
용 |
|
|
|
|
CA 652HS |
CA 653HS |
DF-10RW |
|
품명 |
MAX. STRAP WIDTH(mm) |
CORE SIZE(mm) |
DISC OUTTER DIA.(mm) |
COIL WINDING |
WHEEL TYPE |
CA 652HS |
19mm x 2coils |
NO |
Metal 630 |
R |
8"steel & rubber |
CA 653HS |
32mm x 1coil |
Metal 630 |
8"steel & rubber |
|
품명 |
용도 |
DF-10RW |
Accepts
mill wound or ribbon wound coils 3/4"
and 1-1/4" in width. |
|
|
|
|
|
For steel strapping
(SIGNODE) |
|
|
| STEEL
STRAP
|
|
품명 |
CORE SIZE |
MAX. STRAP WIDTH(mm) |
MAX. FACE COIL(mm) |
CA 352 |
200 |
38 |
160 |
| DISK OUTER DIA(mm) |
COIL WINDING |
WHEEL TYPE |
ASSEMBLED |
| Plastic 495 |
O |
NO |
Semi |
|
품명 |
CORE SIZE |
MAX. STRAP WIDTH(mm) |
MAX. FACE COIL(mm) |
CA 120HS |
150,200,280 and 400 |
40 |
200 |
| DISK OUTER DIA(mm) |
COIL WINDING |
WHEEL TYPE |
ASSEMBLED |
| Metal 616 |
R/O |
6" rubber w/steel center |
Semi |
|
|
|
|
|
|
|
|
|
|
|
|
Steel Strapping Cutters |
|
|
|

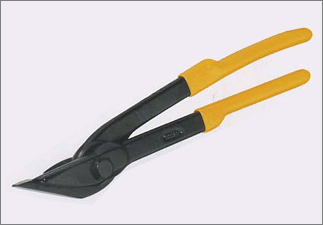

H 201 Y
Same as H 200 and with yellow PVC grip.
|
|
|
|
|
|

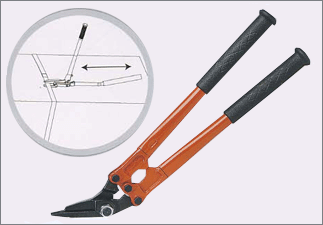

H 300
High carbon steel lost wax casting strap cutter for
straps up to 2"x0.035"
|
|
|
 |
