Technical data



Type Width (mm/inch) Linear breaking (KG) Length per coil (M/FT) Coils per CTN Coils per pallet
Light Range:
BG-CSL-40 13/1/2 200 1200/3940 2 60
BG-CSL-50 16/5/8 285 850/2789 2 60
BG-CSL-60 19/3/4 380 700/2298 2 90
Standard Range:
BG-CS-40 13/1/2 300 1100/3609 2 60
BG-CS-50 16/5/8 425 850/2789 2 60
BG-CS-60 19/3/4 475 600/1969 2 90
Heavy duty Range:
BG-CS-55 16/5/8 550 600/1969 2 90
BG-CS-65 19/3/4 625 500/1641 2 90
BG-CS-85 25/1 785 500/1641 2 60
BG-CS-86 25/1 925 450/1641 2 60
BG-CS-105 32/5/4 1500 250/820 2 60



CA 100H, CA100HS

ǰ

CA-100

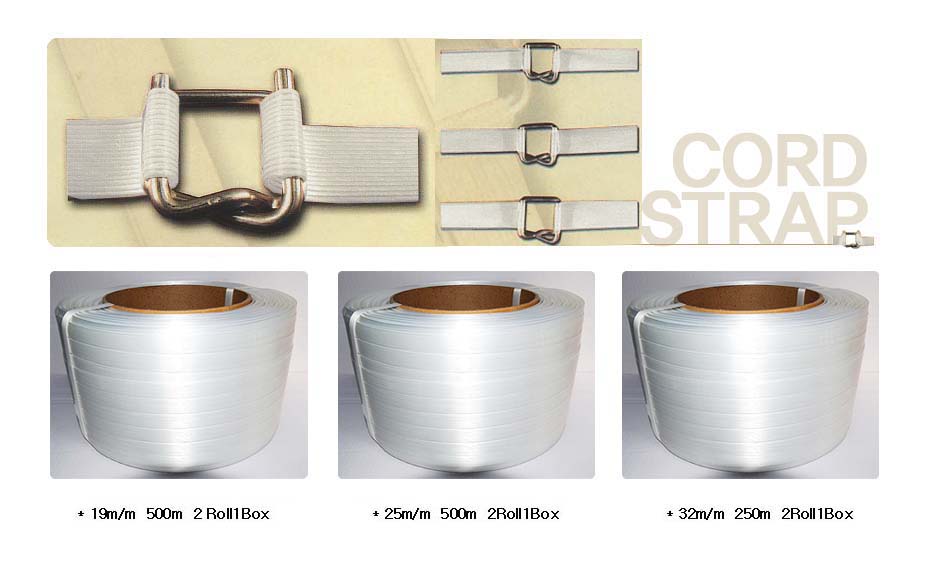

PET, CORD, PP
